Waghorn Guitars Alex Hutchings AH6
Waghorn AH6

Waghorn Guitars has collaborated with Jazz/Fusion guitarist Alex Hutchings to produce the AH Series 6 and 8 string guitars.

Alex's mission to find the perfect balance of body design, pickups, hardware and aesthetics to suit his style has seen him very much involved in the design and prototyping process that has brought the AH6 from its inception to the current specification.

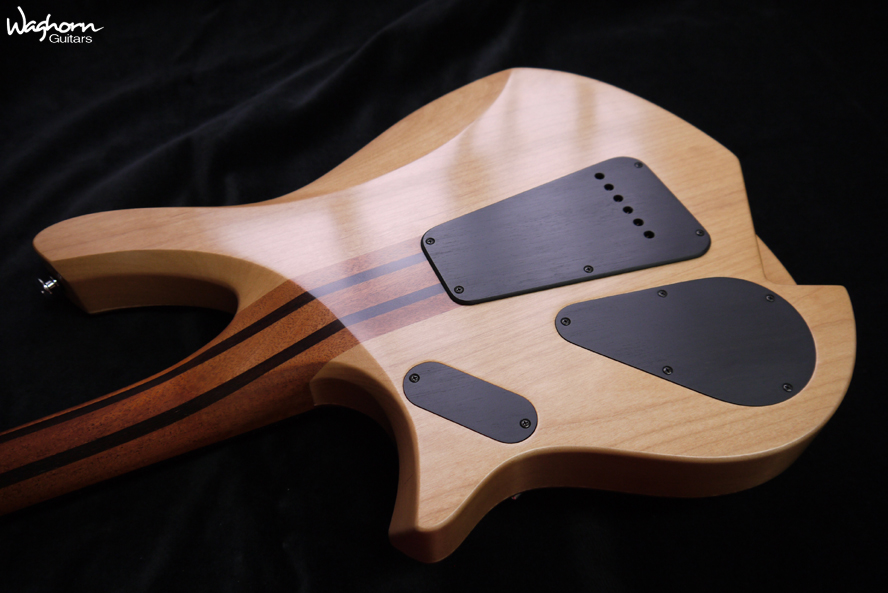

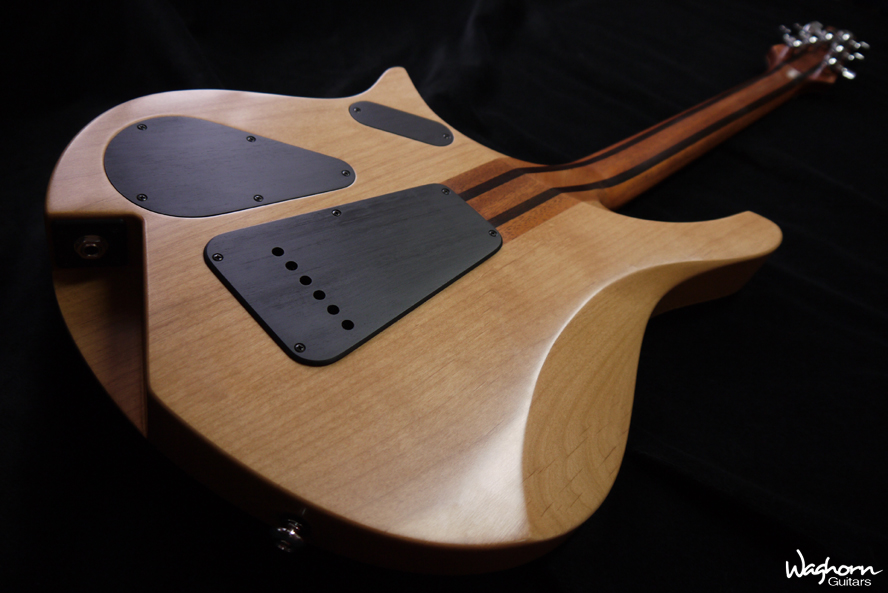

Half-through-body neck construction allows unparalleled access to the 24 fret 25.5" scale ebony fingerboard - without sacrificing as much of the Alder body wood as a conventional full neck-through guitar, for a warm, smooth and well rounded tone.

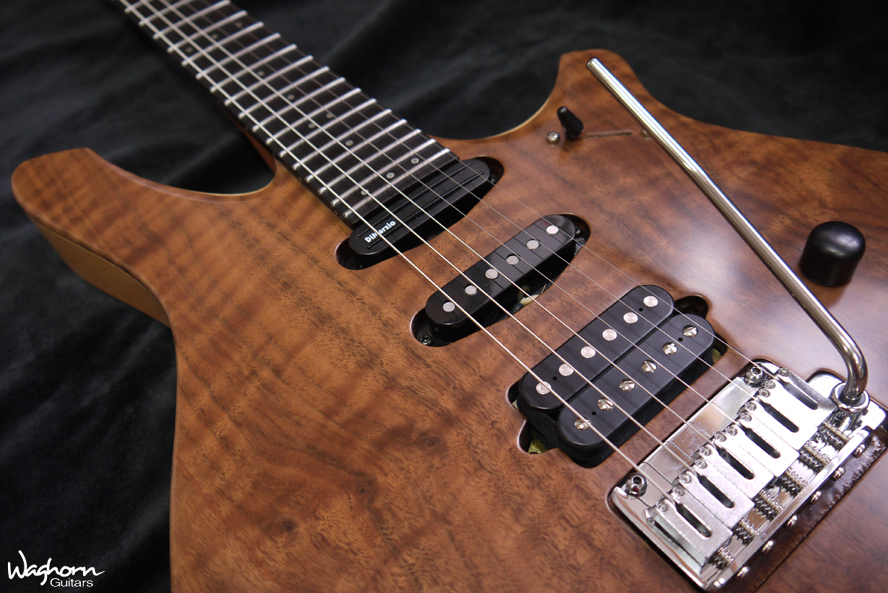

The electronics center around DiMarzio's Air Zone (bridge humbucker), True Velvet (middle singlecoil) and Air Norton S (neck singlecoil sized humbucker) which comfortably provide the vast range of tones required for Alex's genre-spanning jazz fusion style, handling everything from sparkling clean chords to Alex's signature mindblowing shred histeronics. The recessed Gotoh 510 tremolo and Schaller M6 locking machineheads ensure tuning stability and sustain in every situation.

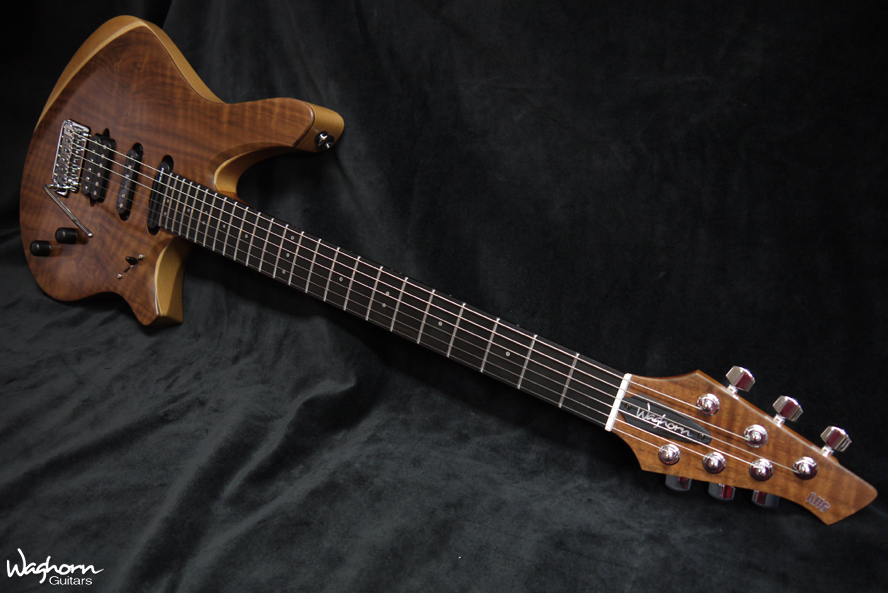

The AH6 is available as the standard model (pictured) and the AH6-GK version featuring the Roland GK3 Divided Midi Pickup system. See below for the full specification and options list. The AH6 is available now on a built to order first-come-first-served basis. Click here for more information on pricing and how to order.

Waghorn AH6 Specification & Options

General Specification

Body Construction : Solid
Neck Construction : 5 piece Half-Through Body
Range : 6 string
Scale Length : 25.5"
Orientation : R/H (L/H available)

Woods

Body Wood Options : Option 1: Alder
Option 2: Swamp Ash
Body Top Options : Option 1: Figured American Black Walnut and Flamed Maple sandwich
Option 2: Quilted Maple
Neck Wood Options : Option 1: Mahogany / Wenge (5-piece)
Option 2: Maple / Wenge / Paduak (9-piece)
Fingerboard Options : Option 1: Ebony
Option 2: Flamed Maple

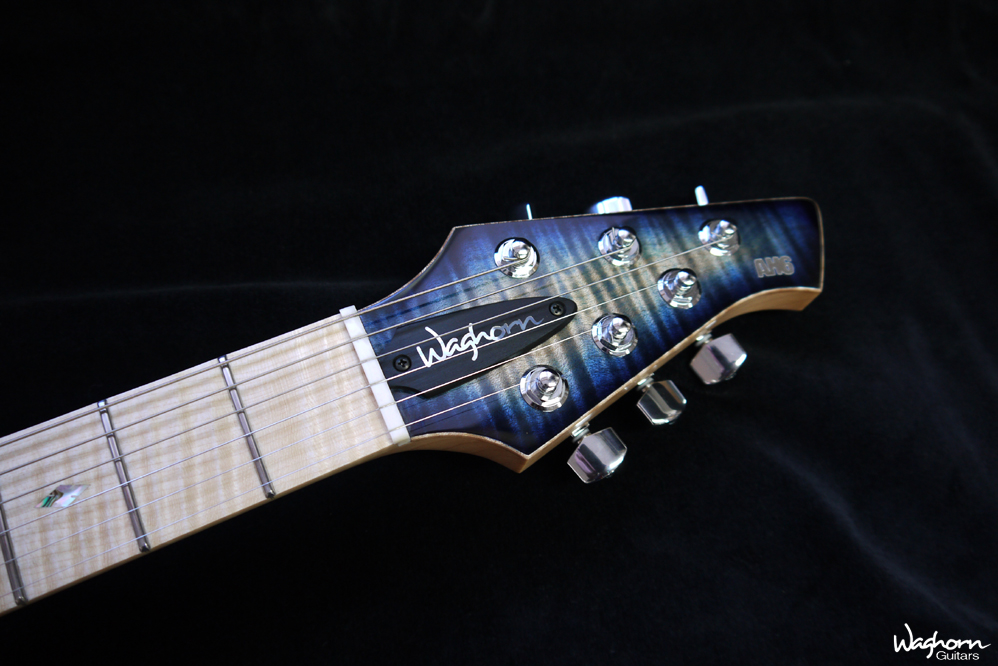

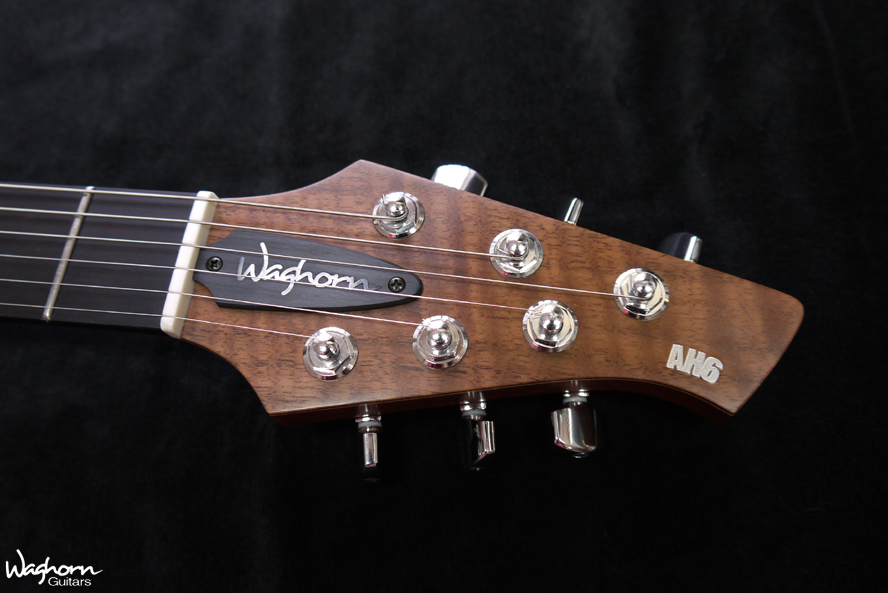

Headstock Facing : Matches Body Top Wood

Neck Specification

Number of Frets : 24
Nut Width : 42.5mm
Neck Thickness at 1st fret : 19.5mm
Neck Thickness at 12th fret : 20.5mm
Fingerboard Radius : 16"
Fret Wire : Stainless Medium (2.65mm wide)
Fingerboard Inlays : Option 1: Waghorn Aluminium Hollowpoints
Option 2: Notched Abalone or Mother of Pearl Diamonds

Pickups & Hardware

Nut : Bone
Bridge : Gotoh 510TS Tremolo w/ Stainless Steel Tone Block

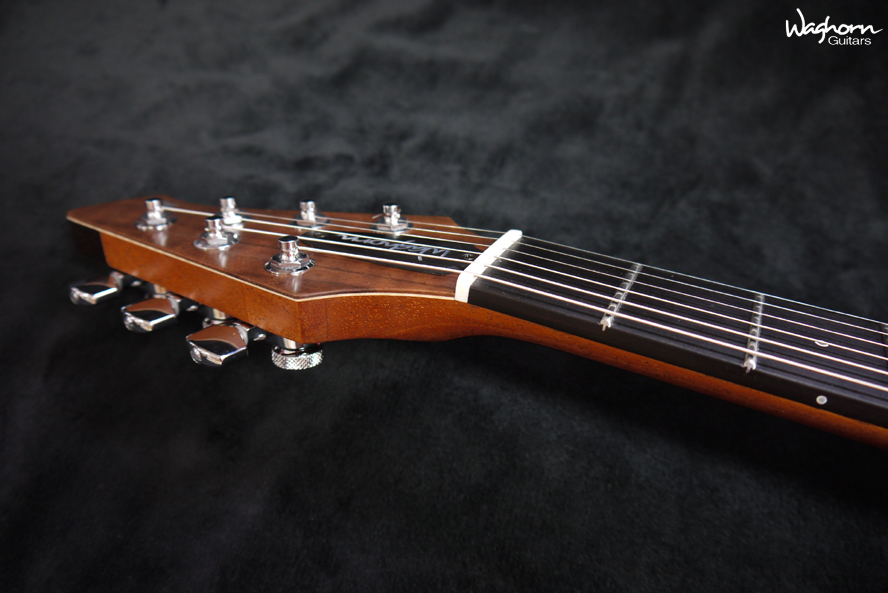

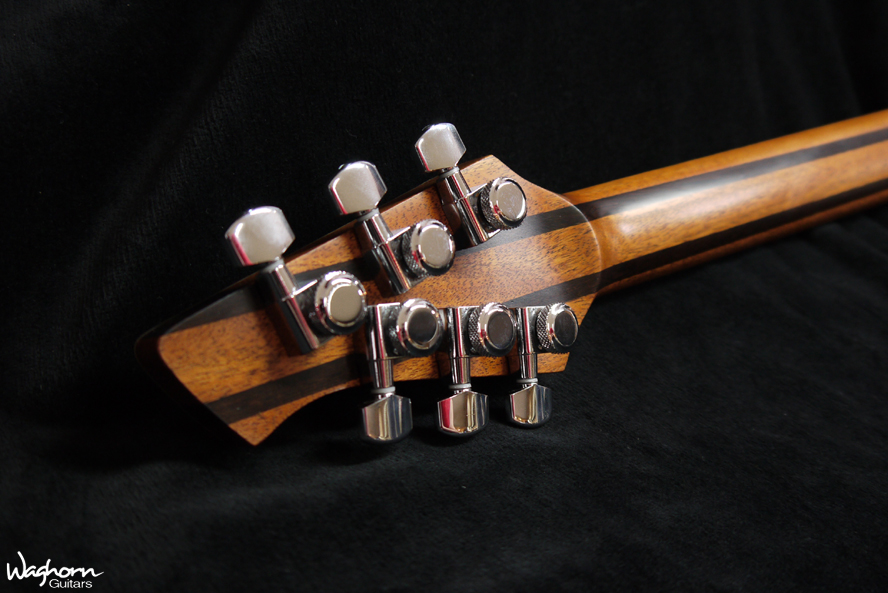

Tuning Machines : Schaller M6 2000 back-locking
Pickup Configuration Options : Option 1: H S H (with Option 1 below)
Option 2: H / H (with Option 2 below)
Pickup Options : Option 1: DiMarzio Air Zone (DP192 bridge humbucker)
DiMarzio True Velvet (DP175S middle singlecoil)
DiMarzio Air Norton S (DP180 neck humbucker)

Option 2: DiMarzio Gravity Storm™ (DP253 bridge humbucker)
DiMarzio Gravity Storm™ (DP252 neck humbucker)
Pickup Mounting : Direct Mounted
Controls & Pickup Switching : Master Volume
Master Tone
5-way pickup switch
Recessed Jack socket
Control Knobs : Ebony Dome Knobs
Strap Buttons : Large

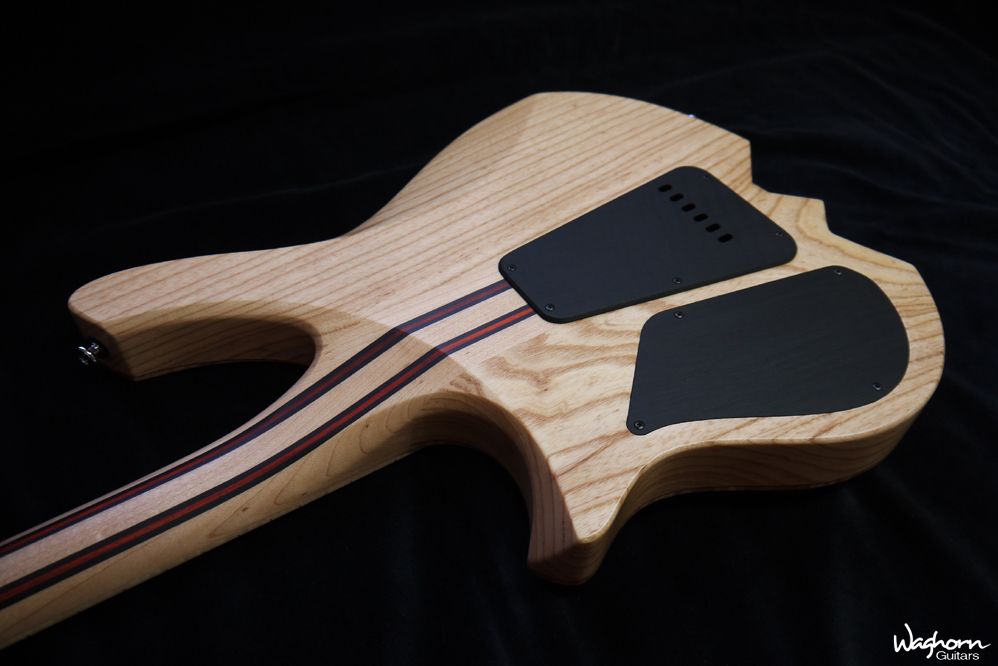

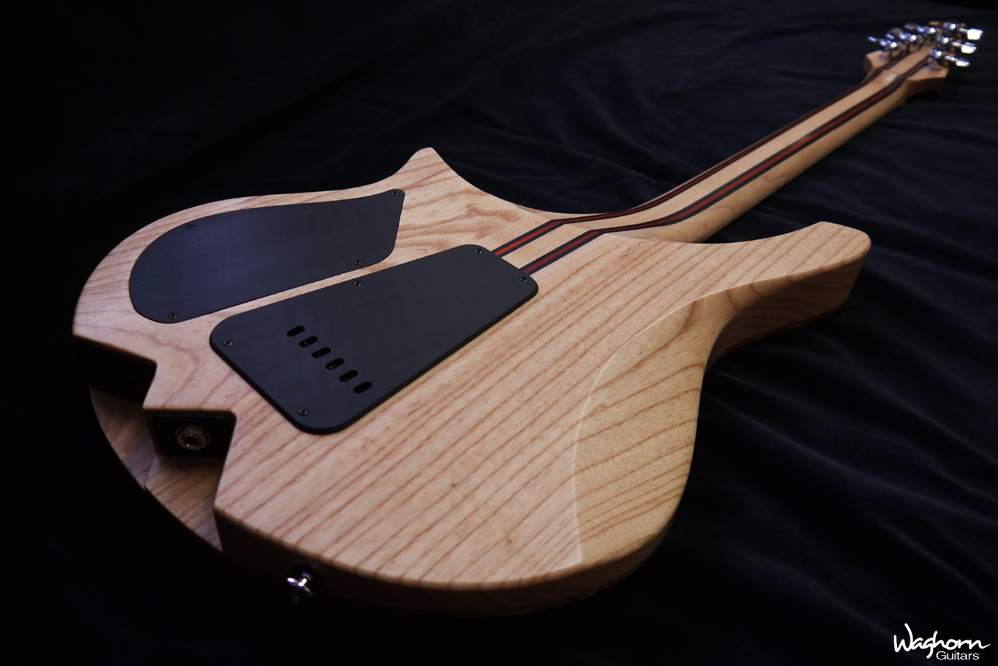

Covers : Ebony truss rod / control cavity covers

Finish

Hardware Finish Options : Option 1: Chrome
Option 2: Black
Logo : Mother of Pearl

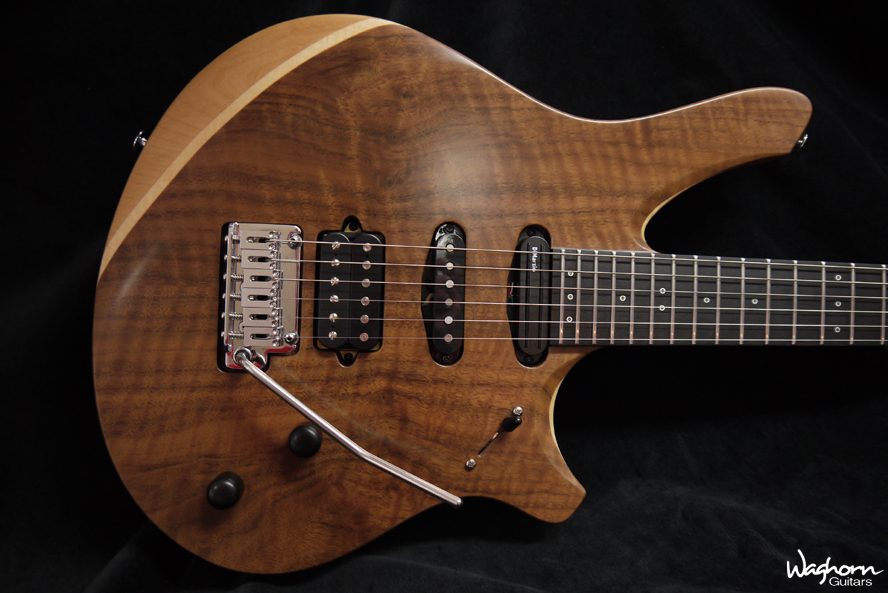

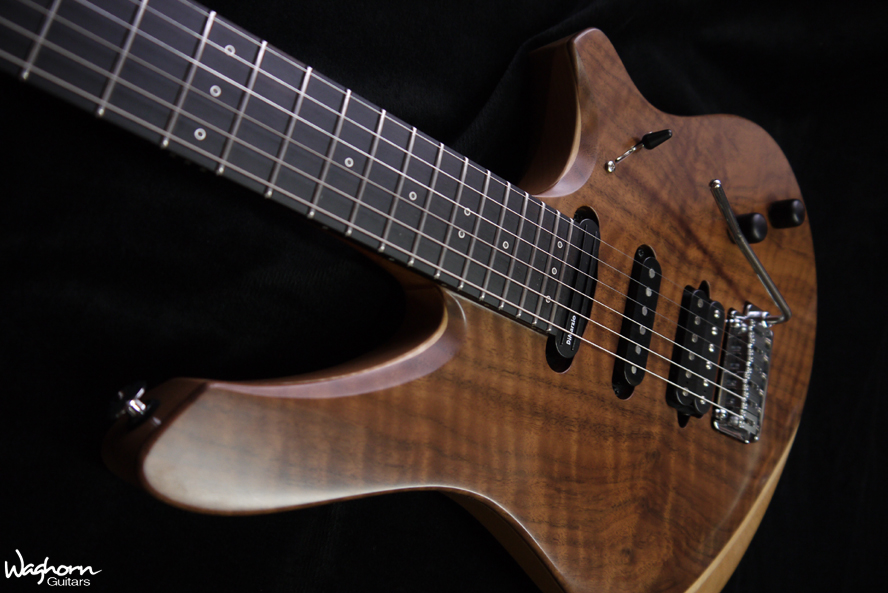

Body & Neck Finish Options : Option 1: Figured Walnut w/ Natural Satin body finish, Oiled neck

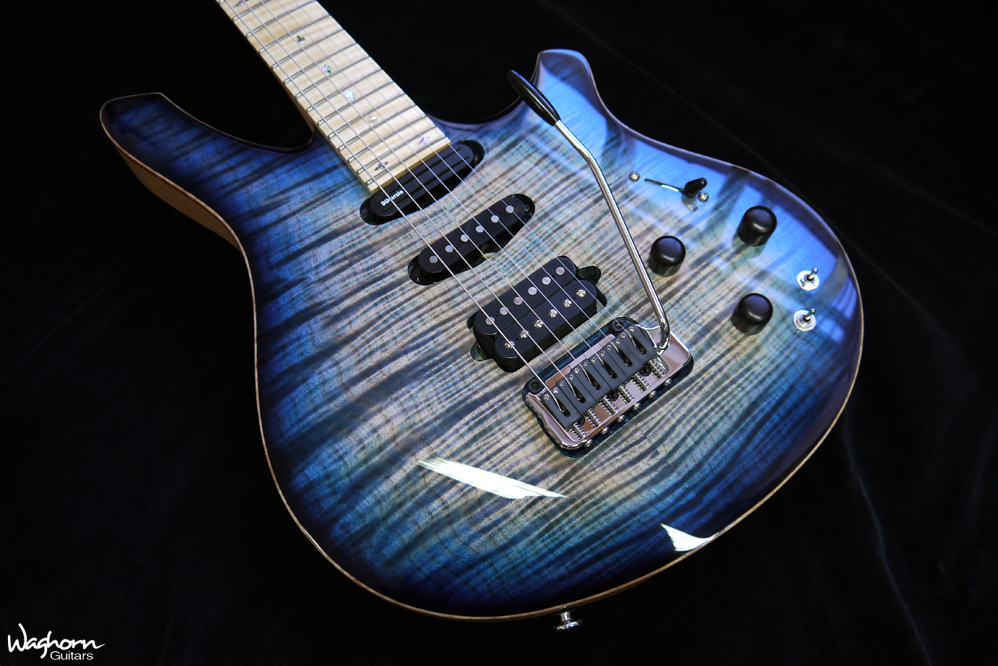

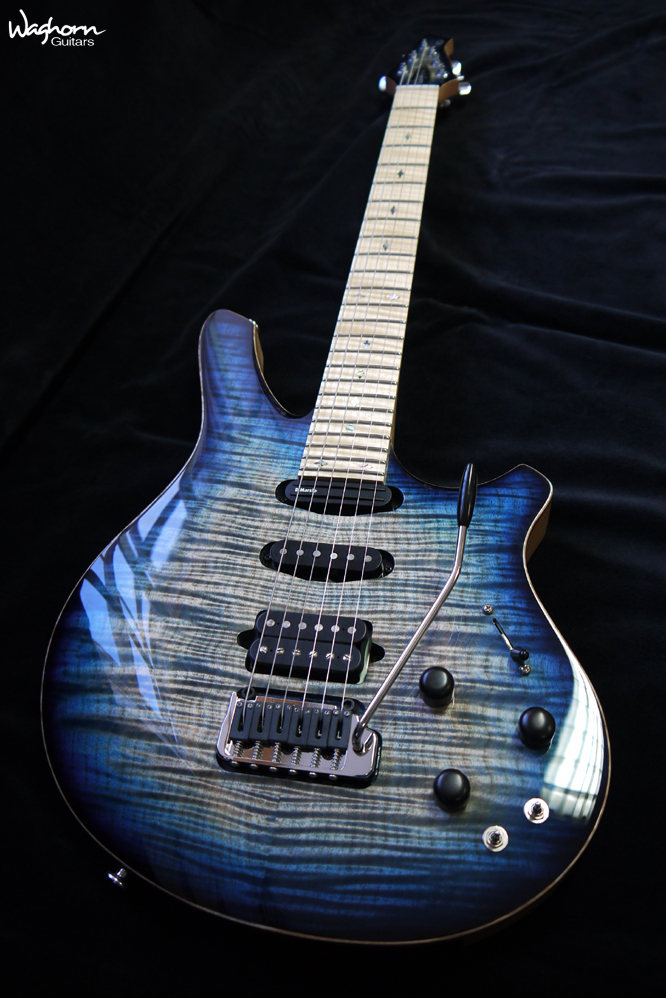

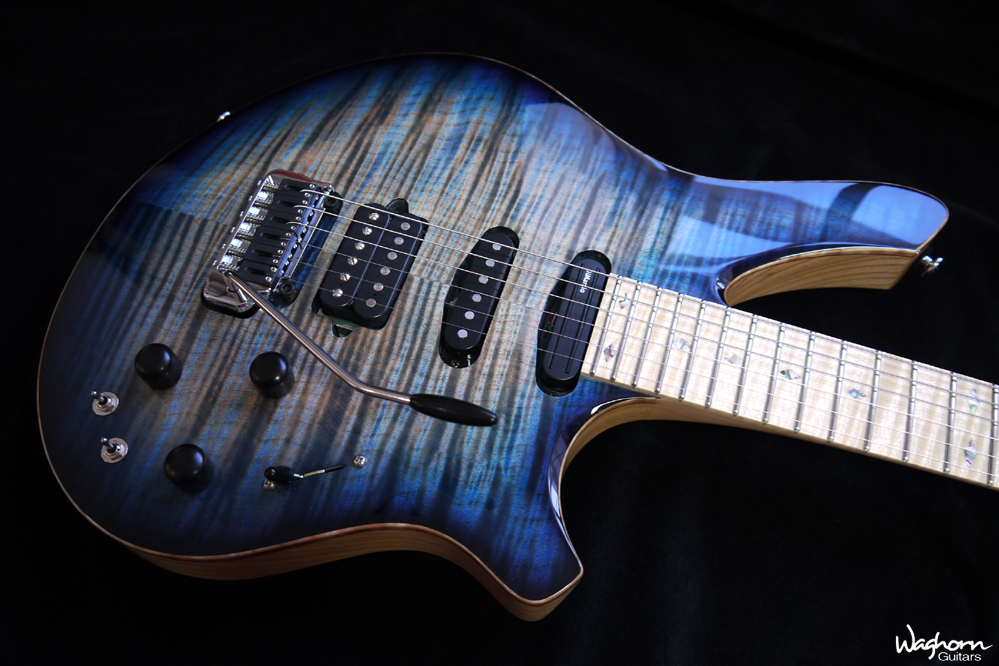

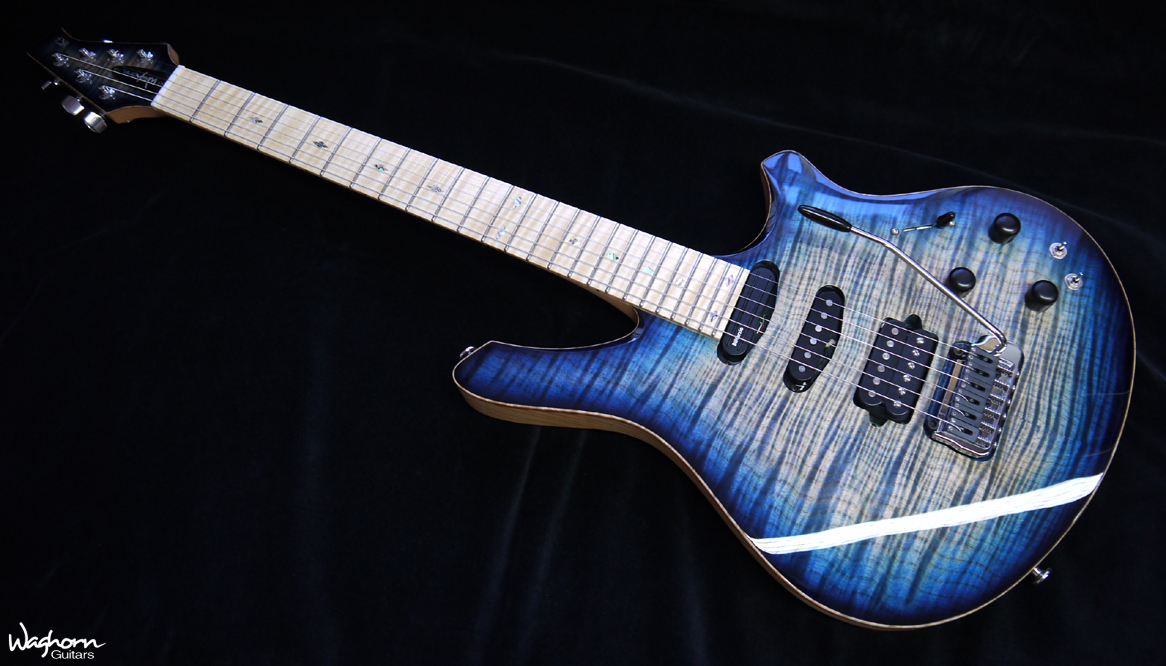

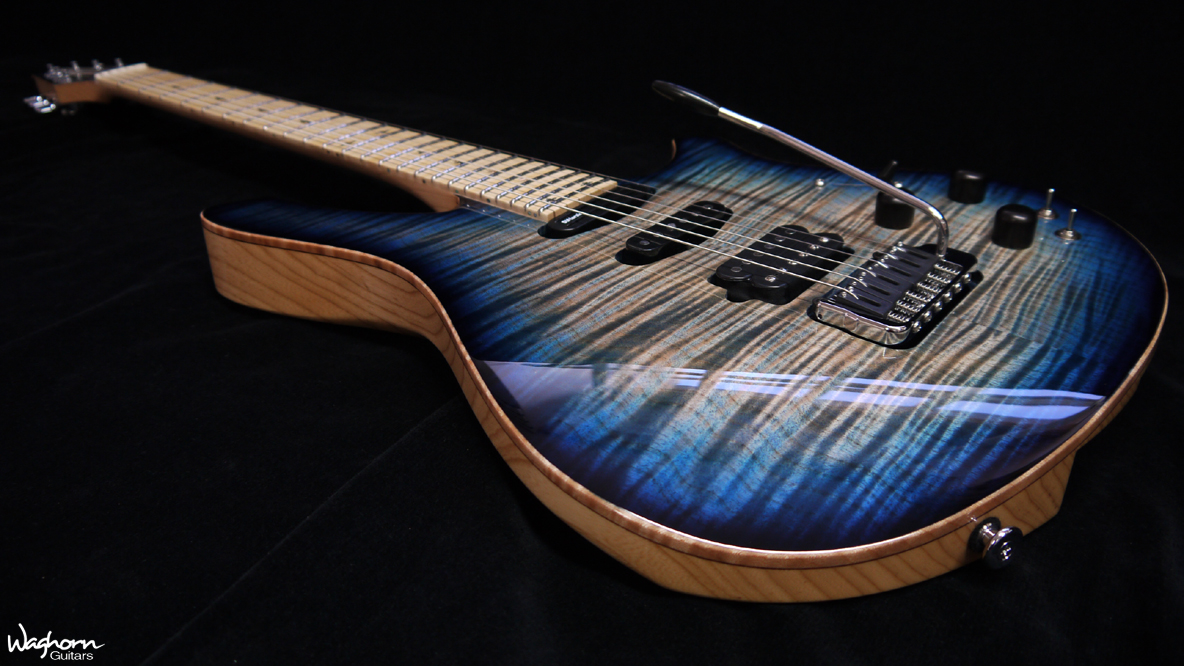

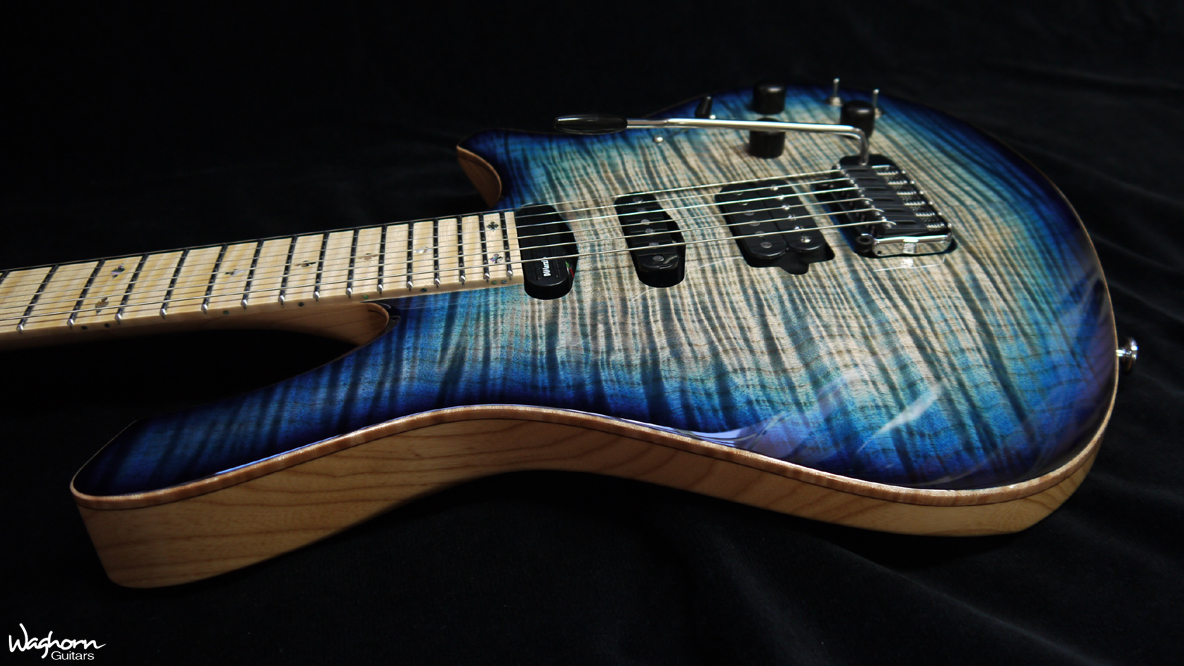

Option 2: Quilted Maple w/ Tobacco Sunburst Gloss body finish, Oiled neck
Case : Hard shell case included
