Waghorn ElectricIonIon-w

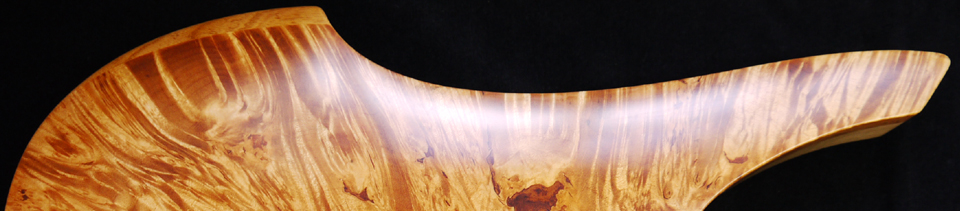

The Ion is a modern ergonomic model that is designed to be low-profile and unobtrusive to the player and perform perfectly in all playing positions. The Ion has undergone many design adjustments since it's conception and the result is a striking yet comfortable guitar with insane upper-fret access and perfect balance.

The Ion-w version features a wider body on the bass side of the guitar for those who want a more balanced look or to retain more of the tonal qualities of the chosen body wood. The arm chamfer on the front and the belly/chest cut on the rear of the Ion-w are extended accordingly to retain the comfort of the standard Ion.

Both versions are available as a standard flat top with ergonomic arm chamfer or a Ion-specific version of the Sloped carve also incorporating the ergonomic arm chamfer.


Ion / Ion-w - Specification Options

These options are just examples and are by no means exhaustive. We can tailor virtually any aspect of our guitar designs to suit your tastes or needs. For more information get in contact.

General Specification

Body Construction : Solid
Neck Construction : Neck-Through; Bolt-On
Range (Strings) : 6, 7, 8, 9 or 12 string
Scale Length : 24.8", 25", 25.5" 26.5" 27" 29.4" or Multi-scale
Orientation : L/H, R/H
Carved Top Options : Flat Top with ergonomic arm chamfer, Sloped carve with ergonomic arm chamfer
Other Body Options :
Headstock Options : Choose from any Waghorn headstock design, or headless


Body : Swamp Ash, Mahogany, Alder, Korina... etc
Body Top : Flamed Maple, Quilted Maple, Maple Burr, Ziracote, American Black Walnut, Macassar Ebony, Wenge...
Neck (principal) : Plain Maple, Flamed Maple, Birds Eye Maple, Mahogany, Wenge...
Neck (laminates) : Wenge, American Black Walnut, Rosewood, Bubinga, Ebony, Cocobolo, Purpleheart... etc
Fingerboard : Ebony, Rosewood, Plain Maple, Flamed Maple, Cocobolo, Ziracote...
Headstock Facing : Ebony, as Fingerboard, as Body Top

Neck Specification

Number of Frets : Typically 24
Fret Wire : Nickel: Extra Jumbo, Jumbo, Medium. Stainless: Jumbo, Medium
Fingerboard Radius : Custom
Fingerboard Inlays : Standard Dots, Alu 'Hollowpoint' dots, Diamonds, Custom fingerboard inlay available
Nut Width : Custom

Pickups & Hardware

Pickup Configuration : All pickup configurations possible, but neck pickups only available with neck-through construction
Bridge : Including (but not limited to): Schaller, Floyd Rose, Gotoh, Wilkinson, Hipshot, Kahler, ABM, ETS...
Tuning Machines : Including (but not limited to): Gotoh, Schaller, Grover, Sperzel, Hipshot... etc
Pickups : Including (but not limited to): Bare Knuckle, DiMarzio, EMG, Lace, Lundgren, Seymour Duncan... etc
Pickup Mounting : Direct body mounted, Pickup rings, Scratchplate mounted
Controls & Pickup Switching : Completely customisable - pickup/electronics specific

Finishing Options

Hardware Finish : Manufacturer dependant: Chrome, Black, Gold, Nickel, Satin Chrome, Cosmo Black, etc
Waghorn Logo : Mother of Pearl or metallic/coloured Decal
Body & Neck Finshes : Natural Satin, Natural High Gloss, Transparent Tints, Bursts, Solid Colours
